Click on link icon below for Pricing of our turntables
What our tables offer that is far superior to the competition:
1.) Aluminum construction - Will not warp like wood tables.
2.) Brass details - won't snap fine details like plastic parts
3.) Best auto indexing system with over 8,000 positional points to program your whisker tracks to
No more trying to make track plan fit table track spacing (ie. 5, 7.5 ,10 or 15 degrees)
4.) Works with Lionel (TMCC cab 1 , Legacy remote & LCS iPad App) & MTH digital control systems flawlessly !
Link to page for Information on TMCC & LCS control
5.) Small footprint of tables due to construction with aluminum, (No need for huge square top of plywood) plus underside mounting with our mounting tabs.
6.) Most customers can install table in about an hour and be running trains
7.) Easy lift out of bridge with one wire disconnect. Great for when building layout, nothing to damage during construction!
Customer unboxing video of their new turntable
Our turntables take the realism to the next level
Here is one of our 28" PRR turntables in action on our customer Norm C's Layout
(Click image below to view video)
Norm C's Turntable
O scale Turntables available in 24,26,28,30,32 & 34” ( 2 or 3 rail )
Take a Look at what goes into our Turntables
with Industrial Belt Drive train for Smooth Operation!
**Our mounting tabs are set 1.5" down from top of pit wall, allowing for up to 3/4" of plywood and up to 3/4" of soundboard or foam on top of that.
If less is needed you can just shim the difference or use a double nut method when mounting to layout. All turntable sizes only need a 1/2" larger hole than bridge size.
Example a 34" turntable only needs a 34.5" hole in the layout.**
**We offer our turntables with different bridge configurations allowing modelers options to match the railroad they model**
The photos below show the various styles from our standard version to our more road specific models
Our 34" Turntable will handle the Biggest of your locomotives.......
Scale Big Boy's, Allegany's , AB or AA Diesel units & even a Scale Pennsy S1 ( weighing 30 lbs) seen below!
Left photo shows our turntable with included detail parts installed. Photo on right shows how the turntable ships. Deck is stained, pit painted & track installed & wired.
Photo below shows turntables lower support, cog gear, motor & integrated motor mount
Below are a few photos of our water-jetted aluminum bogies with brass details
Brass Pipe Railing Stanchions - (now come on our standard turntable & UP/SP models)
Left photo of 3 Rail Track & Deck Right photo of 2 Rail Track & Deck
Shown below are available options for your turntable.
Optional Weathering of Turntable pit & bridge deck - $100.00
Photo below shows the different finishes that can be done to our turntables .
Weathering of pit & Bridge Decking ( Give your turntable the in service look, with custom weathering)
Optional choice of Laser cut cab with LED light for additional $35.00

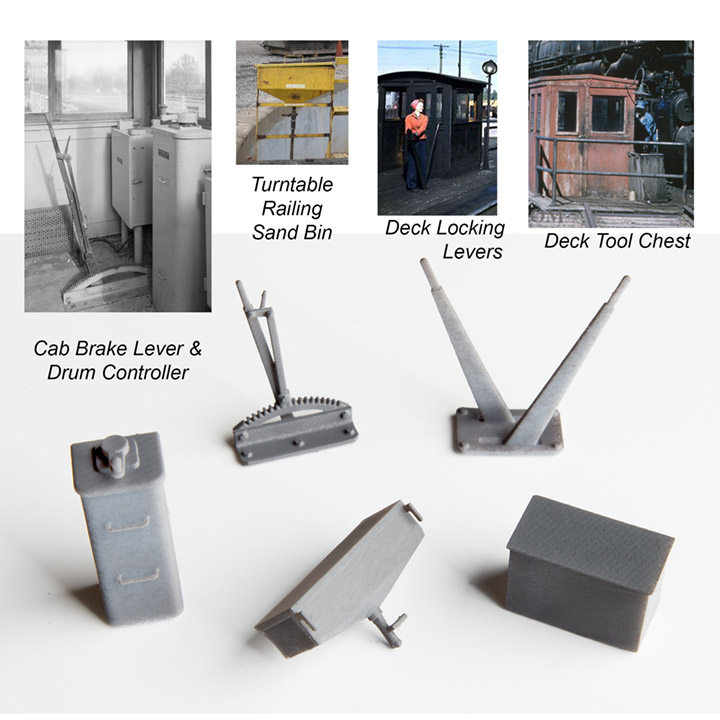

Available option for your turntable or transfer table to super detail your bridge deck and cab
Detail parts pack $30 O scale $25 S scale
Made of resin
Includes: Drum controller & Brake lever for inside control cab
Locking levers for bridge deck
Tool Chest for bridge deck
Sand bin that hangs on railing wire at end of bridge for sanding rail
If you wish to control our indexing system with
Cab1/ Legacy Cab 2 remotes or the
iPad App
You will need to purchase a TMCC Indexer interface Board.
(Plugs into Lionel Cab 1 or Legacy command base via DB-9 port) Allows operation of Turntable or Transfer table with indexing to operate by Lionel remote
Here is the link to our instruction page for hooking up the TMCC indexer interface board to our system and the operating commands
For those wishing to install the keypad into a box. The holes in faceplate are made to fit a weather double gangbox found at Home Depot or Lowe's , Amazon etc.
B&M Inspired & Standard Gauge Turntables
(Pricing is same as any of our other upgraded turntable arches )
Custom turntable project and is available to order. Call if you would like to order one for your layout or order below.

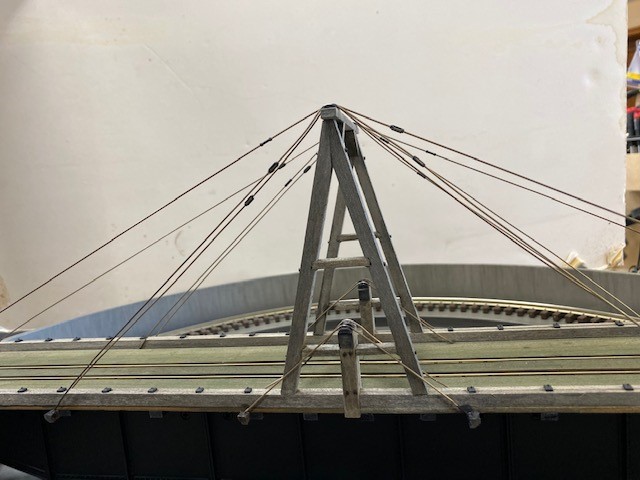

This is an On30 Gallows style turntable. We created some custom 3D printed detail parts for the bridge. We are currently building another one as a 3 rail version for another customer.
Gallows Turntable
A couple of videos from Eric's Trains video train blog of replacing an Atlas turntable and installing and operating our turntable
This 24" turntable also has our auto indexing system.
Episodes 44 & 45
Here is a video of a customers 3R PRR Turntable with our auto indexing
The following power supply we recommend for use with our turntable for manual control, if you don't already have a 12VDC variable power supply.
This power supply is not necessary if you opt for our auto indexed table
Railpower 1300 DC Transformer made by MRC
Click OGR on-Line Forum button below to see a satisfied customers recent post (1/25/2019)
(Click Here) to see what people are saying about our turntables on OGR
Customer post on OGR ( 12/28/2018) regarding our customer service (Click Here)
Customer post on OGR (10/3/2011) about making his turntable into an access hatch ( Click Here )
Here is what professional layout builder Scott Anderson had to say about our turntables:
" The finest O scale turntables you will find! We have two on the DWP and are very pleased with the look and performance."
Click for customer photos & videos
An email from one of our many satisfied customers:
